Floor-Standing LiFePO4 BatteryGET PRICE
8.04 kWh compact storage for home and off-grid solar.

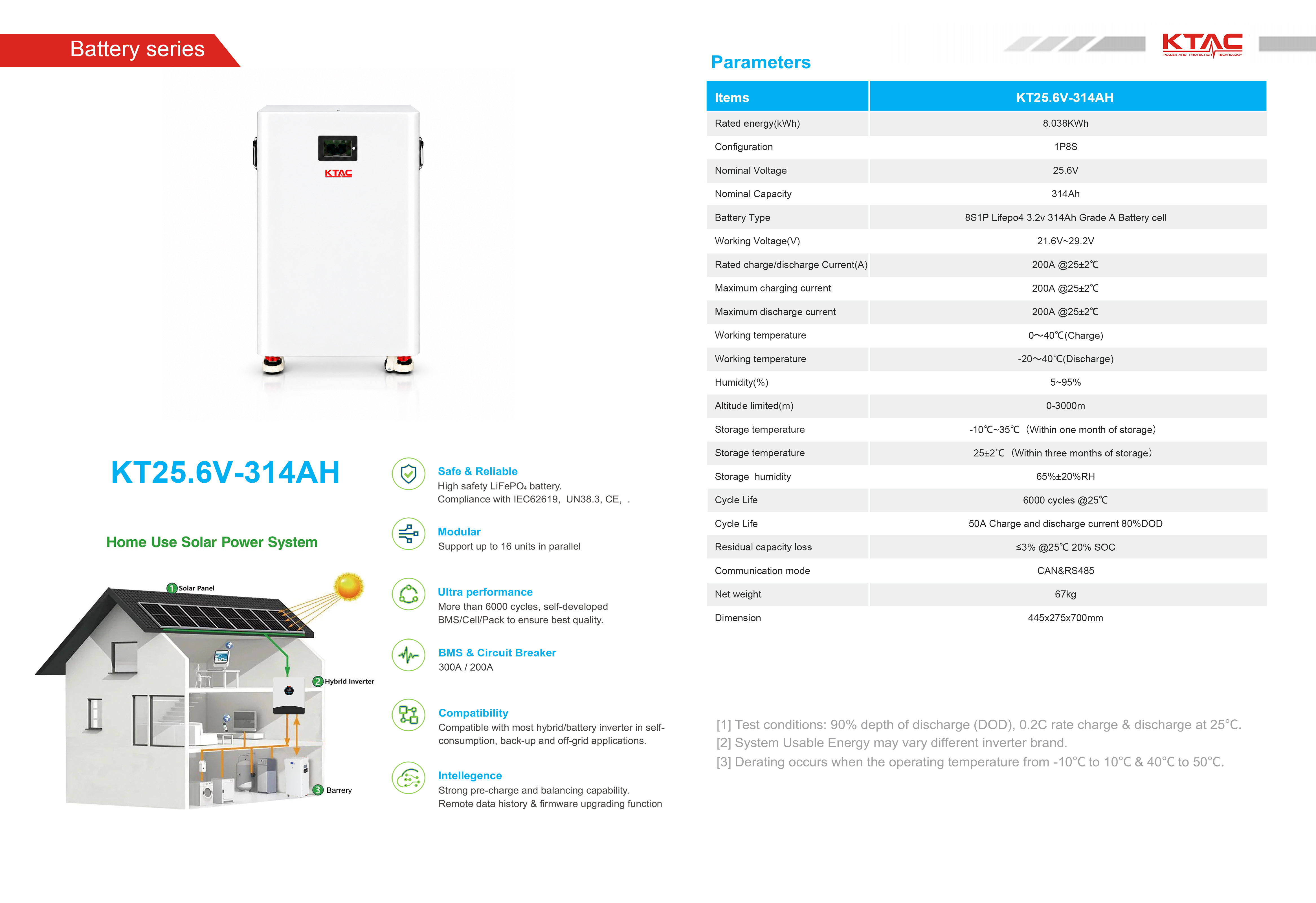

KT25.6V-314AH | 8.038 kWh | 314 AhThe KT25.6V-314AH is a compact 25.6 V floor-standing LiFePO4 battery for home backup, solar self-consumption and off-grid applications. It combines 8.038 kWh rated energy, Grade A 314 Ah cells, CAN/RS485 communication and flexible parallel expansion in one mobile enclosure.
8.038kWh rated energy
314AhBattery capacity
×16Parallel expansion
Specifications
- Model
- KT25.6V-314AH
- Rated energy
- 8.038 kWh
- Nominal voltage
- 25.6 V
- Nominal capacity
- 314 Ah
- Cell configuration
- 1P8S
- Cell type
- 8 × 3.2 V 314 Ah Grade A LiFePO4 cells
- Working voltage range
- 21.6-29.2 V
- Rated charge / discharge current
- 200 A at 25 ± 2°C
- Maximum charging current
- 200 A at 25 ± 2°C
- Maximum discharge current
- 200 A at 25 ± 2°C
- Communication
- CAN / RS485
- Parallel operation
- Up to 16 units
- Cycle life
- 6,000 cycles at 25°C, 50 A charge/discharge and 80% depth of discharge
- Charge temperature
- 0-40°C
- Discharge temperature
- -20-40°C
- Humidity
- 5-95%
- Altitude limit
- 0-3,000 m
- Weight
- 67 kg
- Dimensions
- 445 × 275 × 700 mm
Final order specification requires confirmation. Electrical limits, communication compatibility and ordered configuration must be confirmed before purchase. Technical content reviewed: 27 September 2026 · Source: KT25.6V-314AH manufacturer technical sheet. Technical glossary · Download datasheet
Applications
Off-Grid Homes
